Product Description

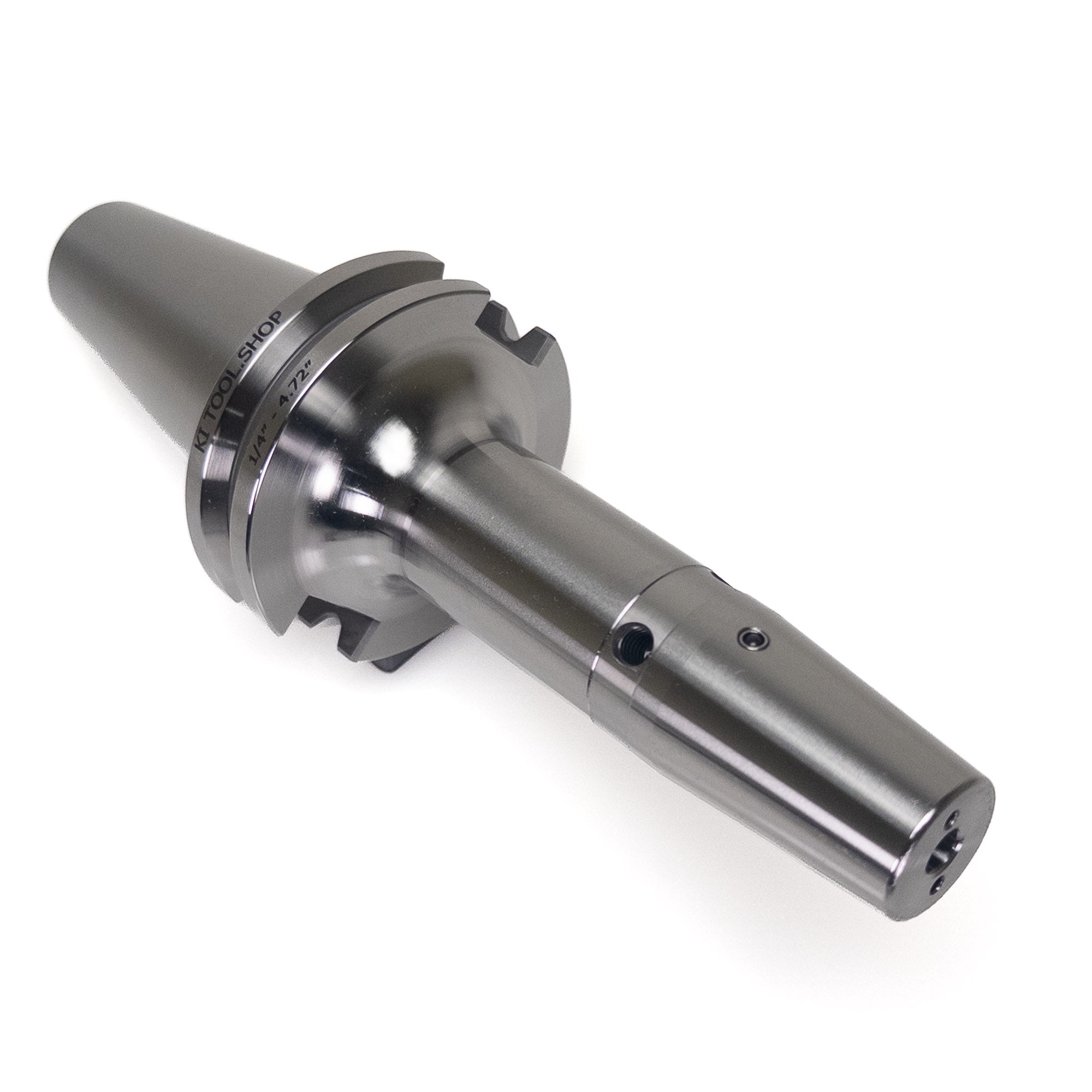

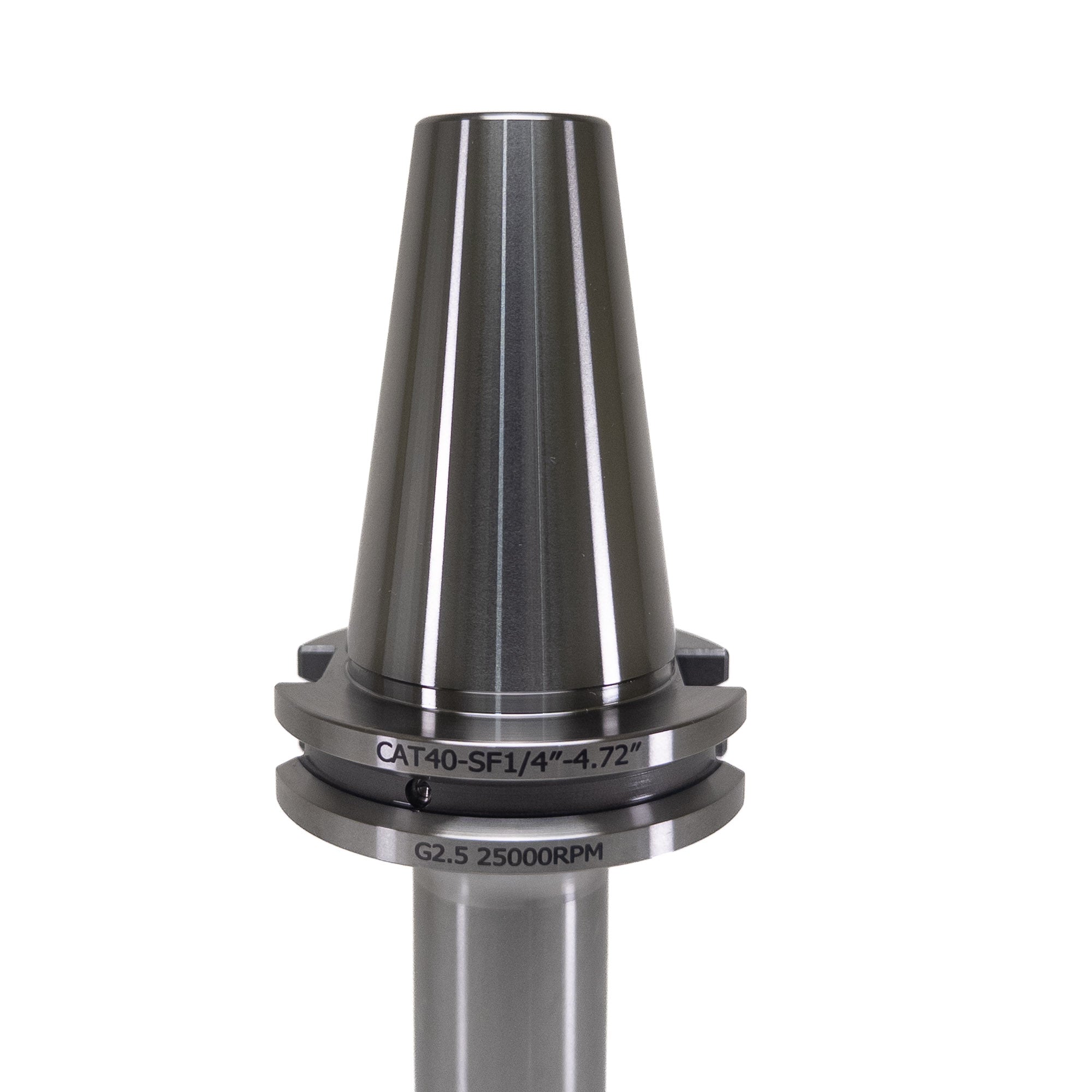

CAT40 Shrink fit tool holders offer low runout and high grip force. While they used to be cost prohibitive, KI Tool is excited to offer affordable shrink fit tool holding.
We use them daily in our shop- and now they're available for yours.
All KI Tool Shrink fit holders are TSC capable (thru spindle coolant)
Specification Table
| Units | Inch |
| Taper | CAT40 |
| Bore Diameter | 1/4" |
| Gage Length | 4.72" / 120mm |
| Tip Angle | 4.5° |
| Maximum tool depth for Coolant | |
| Retention Knob Thread Size | 5/8"-11 |
| Balance RPM | 25,000 RPM |
| Through Tool Coolant | Yes |
| Country of Origin | China |
Note: Tools inserted deeper than "Max tool depth for Coolant" will block coolant ports
